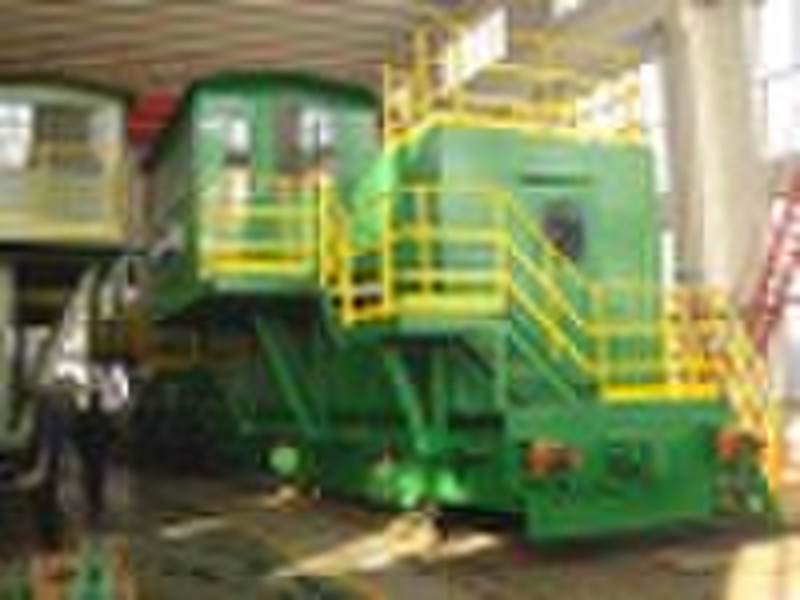

coke oven locomotive

We are specilized in making coke oven machinery.Our products includecoke quenching car, coke pushig machine, coke guiding machine ,locomotive car and coal charging car.We can also process the component of the coke oven machines according to your drawings and requirement. The products we supply can reach the international standard.Welcome worldwide customers to contact us for further communication and business. Technical data: 1. track gauge:2000 mm 2. axle distance::4500mm 3. driving speed: high speed 180m/min medium speed 60 m/min CWQ contraposition speed 10 m/min 4. contraposition accuracy:±50mm 5. running transmission: motor type (2 units) YZB315M1-10-DZZ rotate speed n = 700r/min power N 75 x 2=150KW speed ratio 15.218 6. braking device: brake cylinder: diameter x travel route 254 x 305mm braking leverage: 7.25 7. air compressor (2 units) type: PSK18 air output: 2.97m3/min working pressure: 0.8Mpa 8. air-conditioning unit(2 units) type: Kfrd-120 w/c(f) refrigerating capacity: 12000W heating capacity: 15000W 9. power supply: 3-phase 440V ±10%, 60HZ ±2% 10. external dimension: LxWxH(mm) 10050 x 6500 x 5730 11. deadweight: 48.5t 12. maximum curvature radius: 190m
